Fountain sequence

The Fountain sequence consists of 5 images of the back wall of the Upper Agora at the archaeological site of Sagalassos in Turkey, taken with a digital camera with 573x764 pixel resolution. It shows a concavity in which once a statue was situated.

Table 7.1: Statistics of the fountain sequence for visibility $V$, fill rate $F$ and depth error $E$.

N[view]	$V[views]$	$F[\%]$	$E[\%]$
2	2	89.8728	0.294403
3	2.85478	96.7405	0.208367
5	4.23782	96.4774	0.121955

The performance characteristics are displayed in the table 7.1. The fill rate is high and the relative error is rather low because of a fairly wide baseline between views. This is reflected in the high geometric quality of depth the map and the reconstruction. Figure 7.19 shows from left to right images 1 and 3 of the sequence, the depth map as computed with the 2-view estimator, and the depth map when using all 5 images. The white (undefined) regions in the 2-view depth map are due to shadow occlusions which are almost completely removed in the 5-view depth map. This is reflected in the fill rate that increases from 89 to 96%. It should be noted that for this sequence a very large search range of 400 pixels was used, which is over 70% of the image width. Despite this large search range only few matching errors occurred.

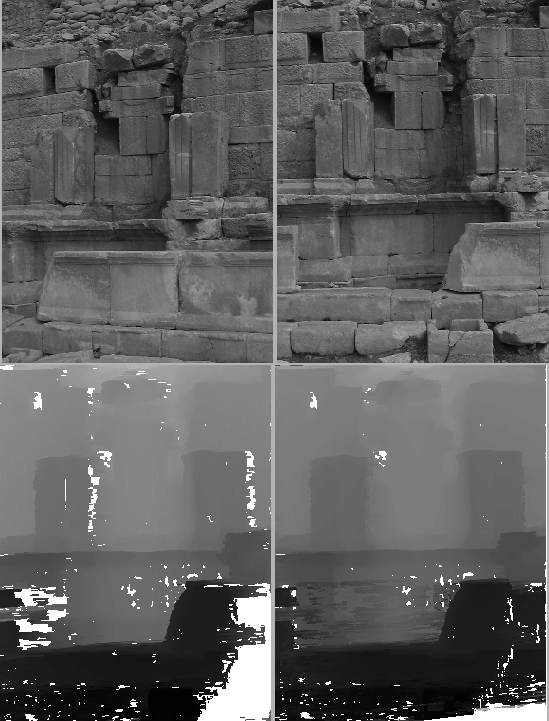

Figure 7.19: First and last image of fountain sequence (left). Depth maps from the 2-view and the 5-view estimator (from left to right) showing the very dense depth maps (right).
